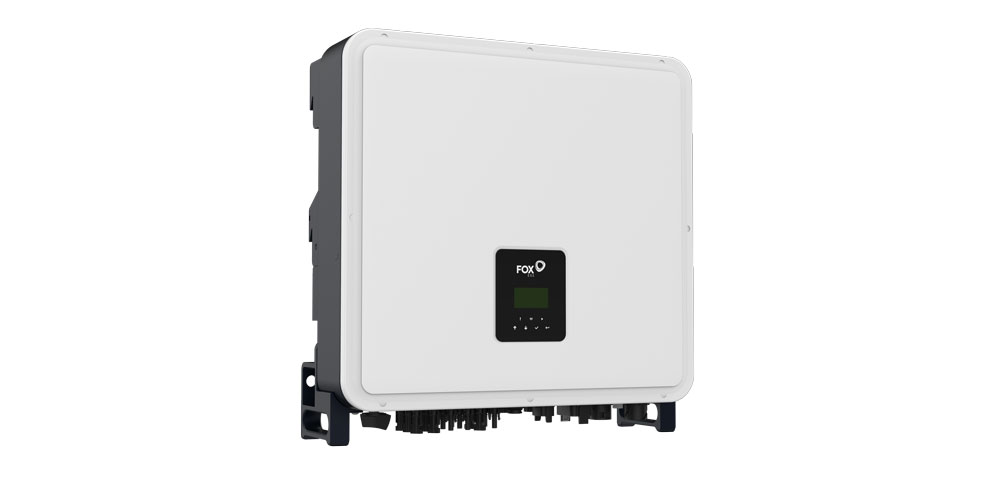

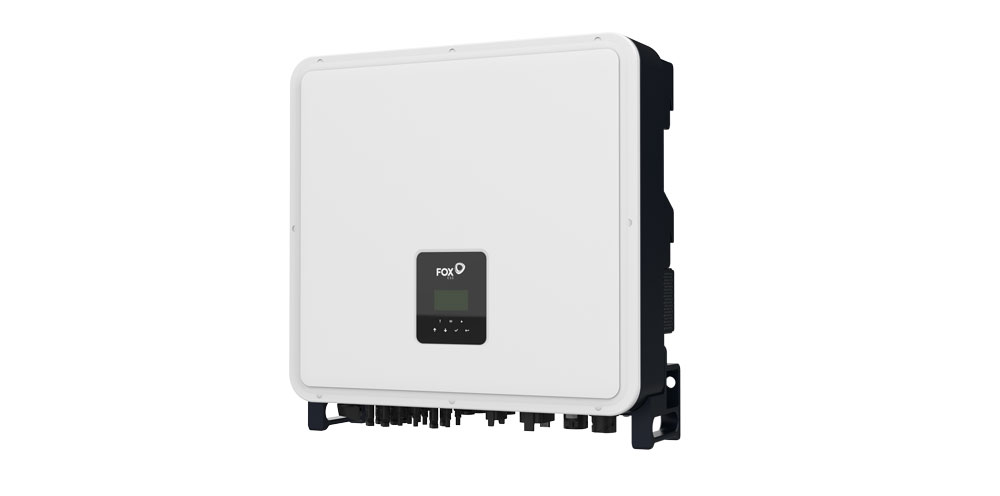

Fox ESS H3 PRO 25KW Three-Phase Hybrid Inverter

The H3 PRO series model boasts 3 MPPTs, can connect into two separate battery banks, and allows for parallel installation of up to 10 inverters

Key Features:
• Easy installation – flexible configuration, plug and play set up
• Includes high voltage batteries for maximum round trip efficiency
• IP65 Rated – Engineered to last with maximum flexibility
• Monitor your system remotely via smartphone, app or web portal
• Max. DC Input Power [W] means is perfect for up to 50KW system array G99 required
• EPS Output (with battery) to grid up to charge discharge rate of 25KWH perfect if you have got or looking get ASHP.



Category: Brand:

Description

General data:
• Dimensions (W*H*D) [mm] 600*560*225
• Weight [kg] 52.5kg
• Comes with a WiFi dongle. LAN and 4G dongles are also available.
• CT clamp supplied. Modbus meter optional for preference or if the distance from inverter to grid supply exceeds 30m.
• EPS (Emergency Power Supply) inbuilt. Homeowners can keep the power on during power cuts with no effect to the inverter’s output power.
• IP65 protection rating. These inverters, along with their ECS batteries, can be installed outside saving space in the home.
• Natural cooling means no noisy fans and so this FOX ESS inverter really stands out as one of the best in its class.
• Fully compatible with EP & EQ and ECS/HV series batteries.


Octopus Tariff Integration:
Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates.
